It is not Lag, That is how it Played!

So I was taking with someone about the Arcade1Up units and admitted that I really liked the Capcom fighter ones (upright and cocktail) ones because they included the original Street Fighter. He said they he hated it because of the “lag” in Street Fighter, and how he does not like most multiboards because of the same thing.  But what he is calling lag, is not really lag!

Continue reading It is not Lag, That is how it Played!

Konami Kicker with Graphics Issues

(Also posted to a FB group that I frequent.)

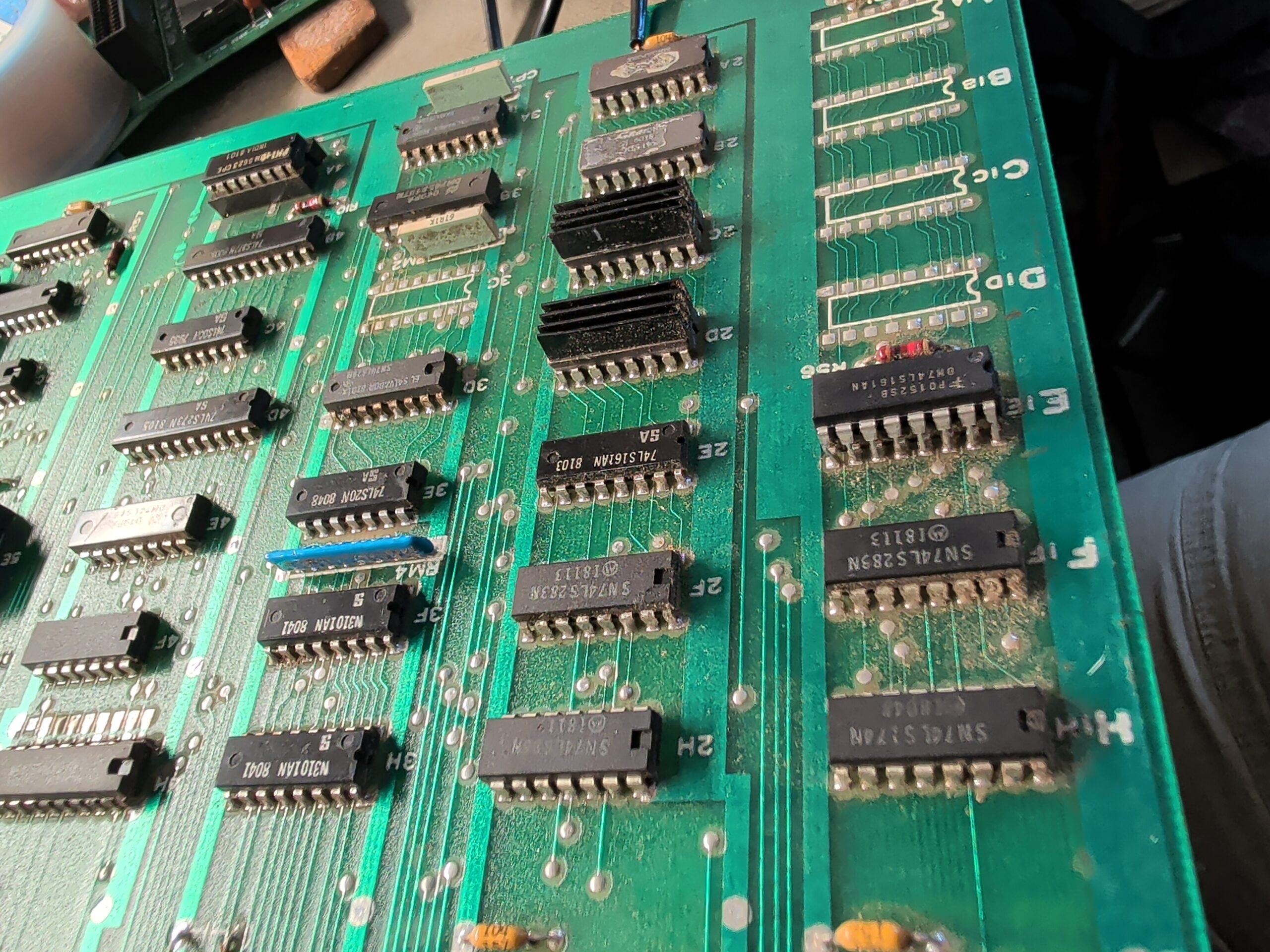

So I dug back into my work pile and pulled out a Konami Kicker board. Was tagged with “graphics issues.” Powered it up to see that it would produce a whole lot of stuck pixels horizontally across the screen.

Also noticed problems with scrolling – parts of the screen that should not scroll horizontally, like the very top of the screen where player scores, high score and lives are shown, would scroll sometimes while parts that should scroll would not.  Sometimes, this would also cause a complete absence of all sprites, and all you get is background and text.  Pushing on the large custom near the center of the board seem to change the behavior so I replaced the socket.

Continue reading Konami Kicker with Graphics Issues

SARS-CoV-2 and COVID-19 and how a Little Knowledge is Dangerous

So I got into a unnecessary discussion with someone about the correct usage of SARS-CoV-2 and COVID-19 – they were using them interchangeably (and actually also confused COVID-19 and the earlier virus name of 2019-nCoV) and also using them to refer to things that were prior to when the official names were coined by the WHO.

They went on to explain how they were receiving “daily training” on this topic and implying that I must be mistaken (and also that the CDC is engaging in fear-mongering WRT COVID-19).  Now, I can understand receiving 3-minute daily briefings on the topic, but calling that “training” is stretching things quite a bit.  Anyone can provide a briefing – all you have to do is read from a page.  Training requires a certain depth of knowledge that not everyone has, and is usually an interactive, time-consuming experience.  If this so-called “trainer” is confusing COVID-19 (the disease) with SARS-CoV-2 (the virus that causes the disease), they need to step down from their position, immediately.

Given the tone of this person’s responses, the hubris demonstrated, how they keep saying that they work for a “government employer,” and touting their so-called “training,” I am guessing some form of town, city, county or state law enforcement.  Which is good – more power to them – we need law enforcement, especially in times like these.

But if this person does indeed work for local law enforcement – that’s cute.

Especially when you consider that some people may work in National Defense (which, BTW, is a Critical Infrastructure Industry as defined by the DHS).  And that they have the responsibility and privilege of helping maintain the safety and security of not just a town, city, county or state, but for the entire country, its war-fighters, and even its foreign allies.

And that some of them might even be cleared employees that, when they receive actual training or briefings, may receive information that is not available to the general non-cleared public (which usually includes town/city/county/state LEAs), and you can be certain this training did not originate from something that someone copied from a group email somewhere.

Always follow the universal assumption – that the other person may known something that you do not (especially when you are ignorant of the other’s position/job).

Telemetry and Telecommand for Modern Pinballs

I just sent a message to Stern Pinball asking about the possibility of adding some kind of WiFi support to their pins. Not for player-related things, but for maintenance and servicing.

For example, I think it would be a good idea for a connected pin to be able to asynchronously notify you if something goes wrong. It could emit a SNMP message each time a BIT fails or when it goes into ball-search mode, or even each time a game is started, when a game completes (including duration information). This kind of information could make a location more responsive to issues and help them with their periodic maintenance.

Even if they decided to use a proprietary protocol and their own monitoring app (but why do the extra work?) I think it would be useful.  Slot machines and video poker-type games have had server-based gaming for more than a decade now.  I think it is time the rest of the amusement industry catches up.

This seems like something that should be relatively easy to implement, and WiFI adapters are pretty cheap these days.

Machine Pin Sockets – What Are They REALLY Good For?

So another debate about machine pin sockets vs. standard (dual-wipe) sockets came up on one of the arcade repair-related groups I am a member of.  And it, like just about every other older discussion about them, centered around not knowing our understanding what they are really supposed to be used for, and without fail, someone brings up the old “square peg in a round hole” argument. Continue reading Machine Pin Sockets – What Are They REALLY Good For?

Can you “Bulletproof” an Atari AR-II Power Supply? I Think I Can…

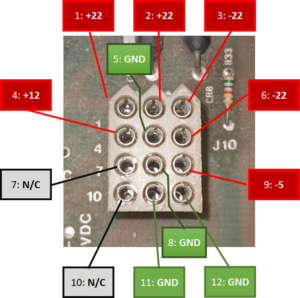

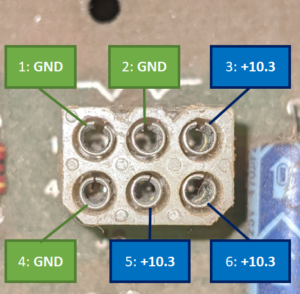

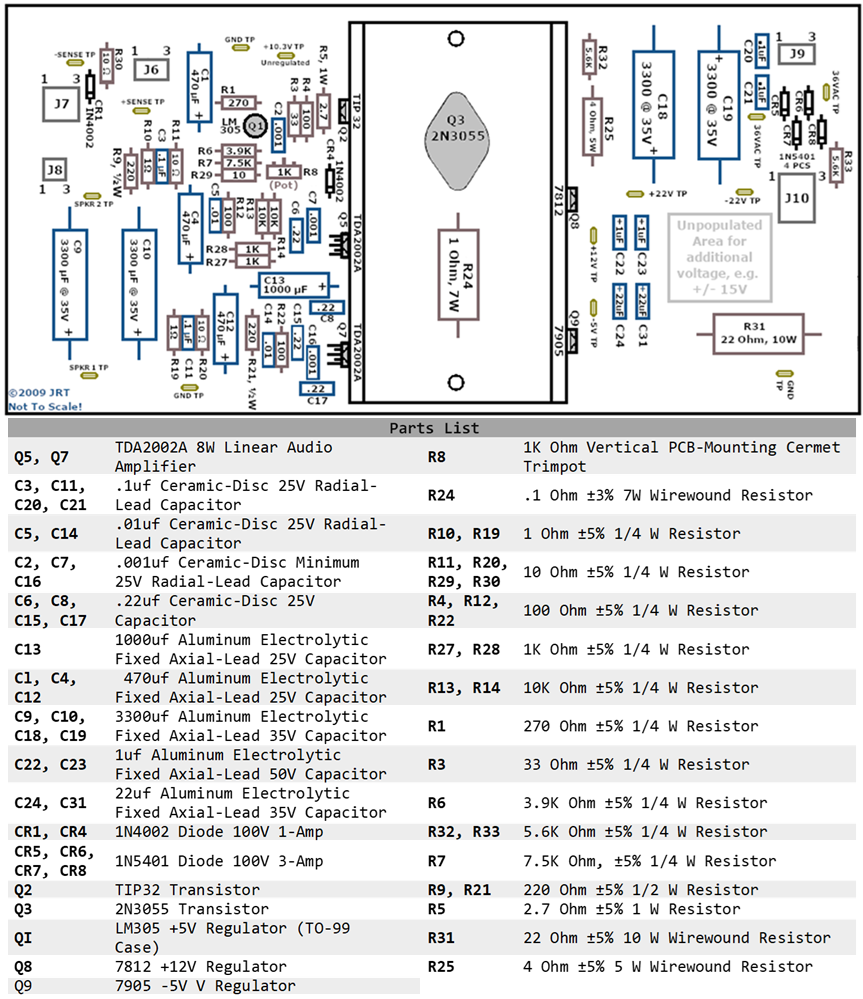

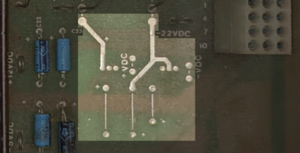

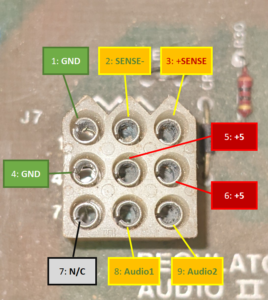

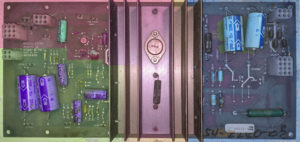

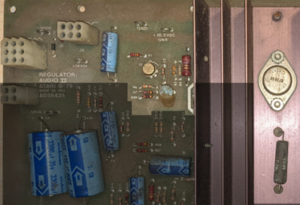

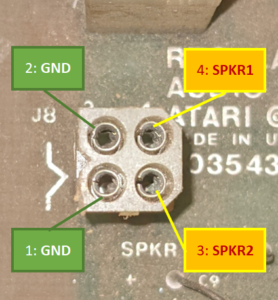

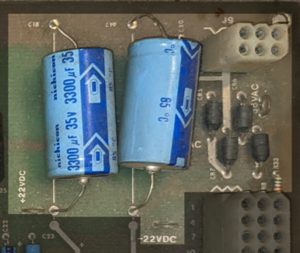

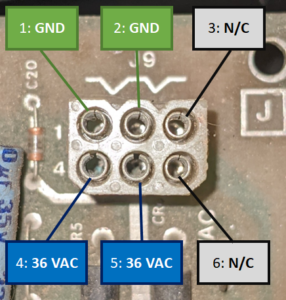

Well, like the title initially asks, can you really “bulletproof” an Atari AR-II board?  From what I have found on the Internet, and older material like Star Tech Journals, the answer really is no.  Pretty much all sources that mention “bulletproof” and “AR-II” on the same page are only taking about performing the Sense mods, and nothing else.

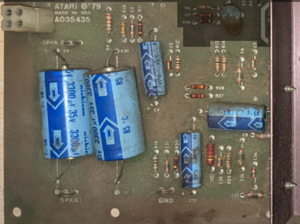

A small amount of pages mention replacing parts (caps, regulators, etc.) due to their age, but that is not bulletproofing either – that is just a good idea.  But I think I can actually bulletproof it, and maybe other power supplies as well.

Continue reading Can you “Bulletproof” an Atari AR-II Power Supply? I Think I Can…

WG6100 w/Tempest Showing a Tangled Mess in the Bottom Right Quadrant

So this is basically the second part of a previous post about a tempest that lost deflection.

After running for a while that Tempest’s display changed into something that can only be described as a tangled mess:

Tempest Tangle Edition
Tempest Tangle

That is something that I never had seen before.  The owner turned the game off and back on again later that day and it was working normally.  Then it would get screwed up again.

Continue reading WG6100 w/Tempest Showing a Tangled Mess in the Bottom Right Quadrant

WG6100 w/Tempest Showing a Multicolored spot in Center of Screen

So I was helping a newly minted arcade game owner when his first purchase, which is his favorite arcade game: Tempest.  Shortly after getting it the X-Size pot fell apart and the game ended up only showing a Multicolored spot (larger than a just a “dot”) which changed depending on what the game was doing.  We soldered in a larger replacement (dangling from some wires) but while this did change the display a little when the pot was articulated, it did not fix the problem.

He had joined a FB arcade repair group and asked for help there and ended up with ideas ranging from his brightness being too high (it was not – I think the person that responded thought the game was drawing normally but with retrace lines and a white dot in the middle, kind of like how it looks when you’re drawing on an oscilloscope with no Z input), voltages too low (they were not), and one even going down the path of impending AR-II failure(!) and going on about replacing leaky sense resistors and the bottlecap transistor.  Oy vey!

Continue reading WG6100 w/Tempest Showing a Multicolored spot in Center of Screen

How a Screen Full of Garbage can be a Diagnostic Indicator

(This is essentially a copy of something I posted in a Facebook arcade repair group not too long ago.)

I was replying to a post that had to do with a game that was showing garbage on screen but was otherwise not working. The type of garbage you see on screen can actually be a good diagnostic indicator. At least, it is a better diagnostic indicator than nothing on screen at all. Continue reading How a Screen Full of Garbage can be a Diagnostic Indicator

Lithium Battery Replacement for Williams and other CMOS Systems

So you have decided to reduce the risk of battery leakage damaging your precious Williams arcade or pinball board by replacing the existing AA batteries with a lithium (CR2032) replacement.  Great!  Lithium batteries like the CR2032 tend to leak much less than alkaline batteries so this is a good generally a good idea.

Note that I said much less than alkaline batteries – lithium batteries can still leak causing damage to your PCB!
You need to maintain them like any other battery system.

So now the question is, how long will the lithium battery last before it needs to be replaced?  I would suggest that you replace the battery as soon as it voltage-under-load drops to 2.8v.  Why 2.8?  Two good reasons.  First, here is a discharge graph pulled from the Energizer CR2032 datasheet: Continue reading Lithium Battery Replacement for Williams and other CMOS Systems

+43 Volt Error on a Alltek Systems Replacement MPU Board

So I was helping another collector in the area try to get a Bally Star Trek Pinball running. It had a Alltek MPU replacement board it in that would start to boot but then stop with 5 diagnostic flashes which indicate a problem with the +43v supply. However, when metered at the test point, the +43v looked grossly normal.

Got in touch with Alltek Systems support and the person suggested disconnecting the sound board and seeing what happened. The game came up with it disconnected, and the support person said there was something wrong with the +43v stuff on the sound board. Right where it comes in there is a diode (CR3) that the collector tested open one way, and about 94k ohms the other.

So a good diagnostic step for this kind of hardware, perhaps even with the original boards in it, is to completely disconnect the sound board and see if the behavior of the game changes.

Update: when I returned to that collector’s house, we lifted one end of the diode and tested it again.  Tested open one way but with a lower-than-expected forward voltage drop of about .350v where we expected more for a standard 1N4004 diode.  I called it bad and pulled the diode.  Had the collector solder in a replacement and the Star Trek came right up!

New Language and Compiler for the Fluke 9010A

I have always been fascinated with the older Fluke 9010A microprocessor troubleshooter. I have owned a few through the years and my current bench one has the serial port on it for transferring programs and data between the unit and a PC.

However, I never found its programming language (usually referred to as 9LC, the name of its compiler) very appealing. It feels more like a cross between assembly and script, and does not seem as flexible as it should be but that might be due to its age. So I sought out to “fix” that.

(The rest of this post was moved to the History page of the 10LC wiki.)

Frogger Problems

So I visited the arcade of someone I have come to know and while taking a look around and playing a few games, I stumbled across this screen on a Frogger:

Not exactly playable, if you catch my drift.  Went over the usual stuff, power, reseating, etc.  Voltage was a little low, and the power supply could use some maintenance because of a bit of ripple.  But was able to get it back up again.  When it booted, it booted into an odd screen and I realized it had some kind of HS kit in it.  This was actually nice because it included a RAM and ROM test that showed everything passed.

Went into the game and coined it up to play, and saw this:

Pretty sure that we do not want that many lives per game.  Seeing that this was a pretty strange issue, I thought to reconfigure things in the HS kit.  After readjusting things to 3 lives per game, saving the changes and restarting the game:

Much better, eh?

After fixing something, always be sure to actually try to play it and make sure everything is working right.

Dead Vanguard Board

So I came across a dead Vanguard that was for sale.  Described as only producing a boom sound effect and then a rumbling/static-y noise.  Bought the thing home along with 1.5 spare boards and did the usual checks: Power, Sockets (reseat), etc.  Logic probe on the CPU indicated that it was briefly running and then getting hung up and it looks like there is no watchdog on this game.  The sounds being made were from the sound board, which produces its noises without the main CPU being present at all.

Power takes a little longer than I would like to stabilize (several seconds), and was a tad low on the board, but adjusting it did not change anything.  It looks like the factory switching supply so it likely could use a cap job.

I got memory map information from MAME to try to figure out the memory map, and got a manual for the game.  The manual actually includes a memory map as well as which RAM chips are use in which RAM areas, which is really nice.

Connected up the Fluke 9010 and hit the Learn function.  When it was done, I noticed that the results did not match the memory map in the manual.  The first RAM section (CPU Work RAM) was not identified at all.  Turns out that section had stuck bits (2 & 3).  Replaced the socket and the RAM and the game mostly roared to life, with the exception of the power stabilization issue – it takes a few seconds after being initially powered on before the game will run stable so you have to cycle power several seconds after initially powering it up.  Monitor could use a cap kit but is in decent condition for its age.

Gonna hit that second board in the near future, initial tests show bit 8 is stuck high.

Quick Fluke 9010 Tip

If you use the Learn function on a board, and it seems to ignore an certain part of the memory map that you know for sure is a certain type (e.g a section of the memory map allocated to RAM), run the appropriate test on that area. Bet it will detect a problem with it.

I recently performed a Learn on a board and it failed to identify an area I knew to be RAM. Turns out that the RAM had stuck bits, which must have made the Learn function think it was something other than RAM.  So now I understand that the Learn function can also be used to spot problems with a board.

So-called Web “Developers”

So, I have been seeing this more and more.  I see the term “Web Developer” being applied to anybody that can do basic HTML5 and CSS scripting.  Even worse, I see the term being applied to people that do not know enough to understand how the back end works, or cannot even spell LAMP.

If you can do your job just using Notepad and Chrome (i.e. no compiler), with no back end services, you are just a “scripter.” Just make peace with that, and stop trivializing what real developers do.  And no, you are not writing a “web app,” you are scripting web pages (although maybe for someone else’s actual app).  Does PHP executing DB queries count?  Maybe – if you also (properly) designed the database it is working with.

Continue reading So-called Web “Developers”

Williams Hardware, Switchers and CMOS

So this keeps coming up a few times a year, almost like people completely forget about how to use Google every now and then.

Someone has a Williams 6809 hardware game like Defender, Stargate, Joust, etc.  They install a switcher instead of repairing the existing linear supply (which is  OK, people have their reasons), and everything works great, except for the fact that they occasionally get CMOS corruption and lose things like settings, bookeeping, and scores.

Is something wrong with the switcher?  No, something is just wrong with the CPU.

Continue reading Williams Hardware, Switchers and CMOS

Watchdogging and Corrupted Centipede (Bad POKEY)

Got to work on a busted Centipede that booted to a white background screen that briefly showed the start of the attract mode (things drawn in green or purple) before crashing, watchdogging and doing it all over again.  Test mode would do the same thing as well.

Disabling the watchdog (by grounding the WDDIS test point) did not help as the game would just essentially do the same things but just not reset after it crashed.

Continue reading Watchdogging and Corrupted Centipede (Bad POKEY)

Words to Watch Out For When Buying Arcade Games or Pinball Machines

I have learned through many years of posts, sales, people, auctions, and similar experiences that there are certain words and phrases that you need to watch out for when buying games, boards, etc.

Untested

The first one, and it is a biggie – UNTESTED.  Here is the truth: if dealing with a whole game, and it has an intact power cord, it is never “untested” – somebody tried to plug it in and power it on, guaranteed.  When dealing with intact games, presume “untested” means “I plugged it in, it did not work” – in other words, “broken.”

Now, sometimes “untested” really does mean untested.  For example, if someone just got a great bulk deal on a bunch of boards, and want to move them quickly, they may not want to go through the time and effort of testing each one.  For example, it is not worth building an adapter for a board that sells for $50 working when I can sell it for $30 untested – I would spend more than $20 of my time and materials building that adapter.

Things like power supplies may legitimately be untested because they might not want to risk damaging a board because of a bad power supply (not everyone has a rig to properly test supplies under load).  Same goes for controls, coin mechs, etc.  Might not be worth the time to connect and try out each one.

In general, just presume that Untested means the same as Broken.  That way, you are never disappointed.

Worked [time] ago when I put it into storage, on the shelf, etc.

This is another one.  “It worked 6 months ago when I put it into storage,” or “it last worked two years ago before I put it on the shelf.” Same as above – play it safe and consider that to mean untested or just broken.

It Just Needs This One Inexpensive Part…

This is another favorite of mine.  “It is broken and I am selling it for $100.  It just needs this one little inexpensive $30 part and then it will be worth $400, so this is a great deal!” Continue reading Words to Watch Out For When Buying Arcade Games or Pinball Machines

Dead Gorf

So I found a dead Gorf on Craigslist.  It was an older ad, but was still available when I inquired.  Dude I picked it up from had done some pretty impressive restorations on some other games.

Anyway – it was dead alright.  Shows a blank screen that looked overly blue due to how the monitor was adjusted, no starfield was visible.  Slid the test switch over and power-cycled, but this made no difference either.

The previous owner had mentioned that he had done some work on it.  I saw some of his other previous work on other boards of his and while not perfect (some cold joints, or not enough solder in some places leaving “pits”), it was not horrible and definitely no worse than what I was doing when I started out.

Anyhoo, starting with the power PCB – the previous owner said he had already replaced the caps, but I wanted a second look at it, JIC.  On the solder side of the board, some larger traces has been lifted off the board during some previous repair work (I do not think it was his, maybe someone before him?).

It looked like the someone used a serious soldering gun to do the work, because there were scorch marks on the board(!) and flux was all over the older work too.  Continuity was where it was supposed to be, so I guess that while it was ugly, it worked. Continue reading Dead Gorf

Bringing Joust Back to Life

So it came to pass that I ended up with three cabinets for $100 each.  A Great Golf in a Midway cabaret, some Toaplan run-n-gun in a Taito Qix cabinet, and… A Joust(!) in its original cabinet.

I agreed to purchase all three sight-unseen.  When I get them all home, the golf game worked except for a rolling screen, the run-n-gun has an board issue where some sprites are being displayed at the wrong horizontal locations, and the Joust?

Well, the Joust was dead.  Simple static video (monitor needs a cap kit, too), watchdog barking, no response to  inputs, nothing on the LED on the ROM board.

Image-She's dead, Jim!
She’s dead, Jim!

Continue reading Bringing Joust Back to Life

Joust Showing 1 3 5 and a REALLY Effed-Up Screen

[This was extracted from a large article about getting a dead Joust operational.  I thought it made sense to put this part in its own post to help anyone else with a similar issue.  This post may reference content from an earlier post, so keep that in mind when reading.]

So at this point the Joust will run through its self-tests, show 1 3 5 on the LED, and will eventually enter attract mode and can even be coined up and it will play for a few seconds before crashing again.  While the screen is AFU, you can actually read text on it if you look carefully (just turn the audio off).  Pay attention to how the left 1/3 screen is being drawn differently than the rest – this becomes important later:

Continue reading Joust Showing 1 3 5 and a REALLY Effed-Up Screen

Joust With an Input Problem – 1st Player Always Runs Left

[This was extracted from a large article about getting a dead Joust operational.  I thought it made sense to put this part in its own post to help anyone else with a similar issue.  It may reference content from the previous two posts here and here.]

…So now I have a Joust that boots correctly and comes up into its attract mode normally.  However, after coining it up and starting a game, I still have some issues – player 1 starts running to the left non-stop!

Opening the control panel shows the switch is not stuck, and disconnecting its harness did not change the behavior, so I have another board-level issue to resolve.  The input board multiplexes two sets of switches into a 6821 PIA, and the switches come in through one of two header connectors on the board.

Continue reading Joust With an Input Problem – 1st Player Always Runs Left

How to Sell Your Arcade Game

Correctly Manage Your Expectations Before You Try to Sell Your Arcade Game

Something I see far too often are outlandish prices when uninformed people try to sell a game.  I usually see this with someone that originally overpaid (badly) and is trying to make their money back or thinks all games appreciate in value.   For example, “I bought this Street Fighter II 10 years ago for $1500(!) and I am sure it is worth $2500 now!

First: It Is Not Worth What Google Tells You

Occasionally I see someone that has a busted-ass Pac-Man, in a generic converted cabinet with water damage, and a dim monitor, and they Google “Pac-Man Sale Prices” and then think that they can sell it for $1200.  And have the audacity to believe they are getting low-balled when someone offers $250.

No, you are not getting low-balled.  You just did your search (“research”)  incorrectly.  You shoulda Googled something more like “converted damaged Pac-Man prices.” But hey, you did not know any better.  Take the advice of people that know more than you about things like this.

Also, just because someone paid $xxx for that game in the past does not mean that anyone will now.

Second: It Is Not Worth What eBay Tells You

Some people search eBay for prices and use the final sale price.  But before you do that, make sure your game matches up perfectly with the listing you are looking at for your “research.”  Do not try to compare your “home use only” Star Trek pinball with one on eBay that was clean, shopped, with new rubbers and no peeling paint on the backglass or playfield.

And, remember: that price is the price that ONE person was willing to pay.  Look at the bidding history, if you can, to see what most people were willing to pay.

Bigger is Not Better

Continue reading How to Sell Your Arcade Game

Sanyo 20EZ Video Inversion (Parts Kit) Searchable Page

On Bob Roberts site, there is (or was, if the link is broken by the time you read this) a scan of a page that details how to add the missing parts to the Sanyo 20-EZ monitor chassis to allow it to perform video inversion.  Since the page was scanned and not run through an OCR process, the text is not searchable.  As a service to the arcade collecting/repair community, I provide this HTML based, searchable version of the document.

(Note that I am not responsible for the use or misuse of this information, and I might have copied something incorrectly!  No warranties expressed or implied, and the risk of use lies with YOU!  YMMV.) Continue reading Sanyo 20EZ Video Inversion (Parts Kit) Searchable Page

Merit Megatouch 5 Issues

Offered to help out a friend whose husband had an upright Megatouch 5 (CRT-260 motherboard) that had some issues:

  1. Would randomly crash when touching the touchscreen
  2. Would randomly hang or crash even when left alone
  3. After left running for a little while (like, 15 minutes) calibration would “drift,” causing touches to track incorrectly

After opening it up, the touchscreen was covered in dust and the neoprene strips on the edges of it were pretty torn up and had a bunch of debris on them.  Cleaning the screen, strips, and then reapplying the strips with some thin double-sided tape cleared up the touch-the-screen-and-it-dies problem. Continue reading Merit Megatouch 5 Issues

Blog Site for myself, and my friends


Spam Karma 2 has sent 4743 comments to hell and 4 comments to purgatory. The total spam karma of this blog is -968. What's your karma?
